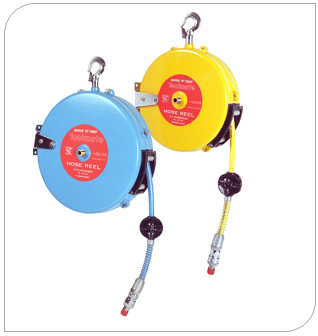

Air Hose Reel Balancer

S.P.Engineers Self Locking Hose Reel Balancer Are Specifically Designed For Light Weight Assembly Tools Where Uncluttered Installation Is A Must. These Air Hose Reel Balancer Provide Simplified Installations & Better Tool Control. Cased In Metallic Housing. The Compressed Air Enters Through An Airtight Joint Providing Pressured Air Through The Tube To The Tool. The Tube Is Fitted With Fitting For Easy Connect/ Disconnect Of The T
Air Hose Reel Balancer

MODEL NO.

  BALANCING CAPACITY

          TUBE SIZE

          MAX      W/L

   MIN.KG.

   MAX. KG

  ID MM

   OD MM

SPAHRB2420

0.5

1.8

8.0

12.0

3.0

SPAHRB2425

1.8

2.8

8.0

12.0

5.0

SPAHRB2430

0.5

1.8

10.0

14.0

2.0

SPAHRB2435

1.8

2.8

10.0

14.0

3.0

FEATURES



* Compact Desindning
* Light Weight
* Special Ratchet Locking
* Conventional Hook for Hanging
* Wall Mounting Bracket
* Smooth Function Over Entire Range
* Avoid Uncluttered Installation



  Application

Automobile Engineering, Mining, Pneumatic, Hydraulic, Chemical, Textile, Food, Marine, Aerospace Industreis.

  Dimensions
  Outlet Connection : 1/4' or 3/8'
Inlet Connection : 1/4" ,or 3/8, 1/2"

  Components
  Case : Metal
Fixing Base : Brass & Stainless Steel.
