Reachet Type
|

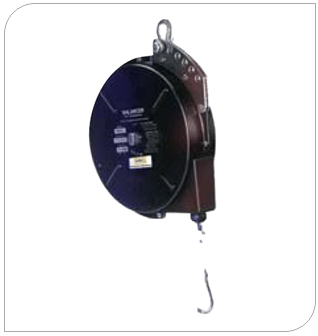

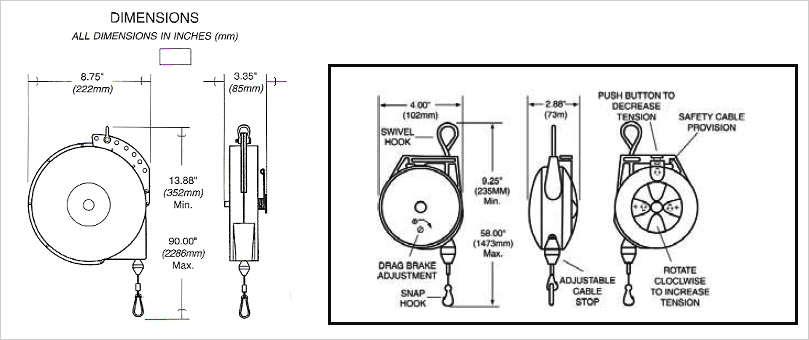

Reachet Type Series A feature rugged steel construction with a baked - on powder coat finish, reinforced hanging bracket with safety hook for ceiling mounting and extra holes for optional safety chain attachment. Spring is permanently lubricated and provides constant tension, adjustable for balancing tool in normal working zone, 6-8 in. (152_457mm). Cable is 920 lb. (414kg) test 0.09” (2,3mm) dia
7 *7 strand galvanized steel aircraft cable nylon covered to 0.12” (3,0mm) O.D Includes safety tool clip #261241 and adjustable cable stop.
SPTBL 10-23 includes all features listed above plus a positive ratchet lock mechanism to allow locking of the cable at a specific height. A slight pull on the cable release the lock which functions like a window shade. Lock feature may be disengaged externally when constant tension is required. |
|
Benefits
* Balances the weight of assembly tools making them nearly weightless in the hands of an operator
* Reduces operator fatigue, heavy tools are easily handled for a full shift
* Increased productivity, keeps tools positioned for immediate use with minimum operator motion.
* Improved safety, ergonomics and work environment.
* Reduced tool damage, balancer prevents tools from being accidently dropped. |
|
|
|
|
| |
MODELS |
GENERAL TOOLS USED |
AREA OF USE IN SHOP FLOOR |
MAKE OF TOOLS NORMALLY USED |
SPSB-120
|
MULTI SPINDLE NUT
RUNNERS
PNEUMATIC RIVETERS
PORTABLE SPOT,
EWLDING GUNS,
NUMBER PUNCHING
MACHINES |
ASSLY OF TRUCKS, VAN, JEEPS
CHASIS ASSLY. SHOP
BODY (WELD) SHOP |
DESOUTTER, DAI, ICHI
INTELTEK, MECHELONIC
NASH, JAYAHIND, SCIAKY |
|
| |
SELECTION CHART
MIN-MAX. CABLE REEL
MODEL LOAD LENGTH RATCHET WEIGHT
NUMBER lbs / kg ft. / m LOCK lbs / kg
Constant pull reels – may be adjusted to balance through 6-18 in (152-457mm) range.
SPTB 10 5-10 2,3 - 4,5 8 2,4 NO 6 2,7
SPTB 12 8-12 3,6 – 5,4 8 2,4 NO 7 3,2
SPTB 15 10-15 4,5 – 6,8 8 2,4 NO 8 3,6
SPTB 23 16-23 7,2 – 10,4 8 2,4 NO 8 3,6
Reels with Ratchet Lock – retract tool upward when manually released
SPTB 10 5-10 2,3 - 4,5 8 2,4 YES 6 2,7
SPTB 12 8-12 3,6 – 5,4 8 2,4 YES 7 3,2
SPTB 15 10-15 4,5 – 6,8 8 2,4 YES 8 3,6
SPTB 23 16-23 7,2 – 10,4 8 2,4 YES 8 3,6
*Cable length listed are “active” or “working” cable. Safety tool clip and cable stop included |
| |
OPTIONAL ACCESSORIES
SAFETY CABLE/CHAIN
Strongly recommended, secondary steel cable or chain. Prevents balancer from accidental fall. Balancers have extra holes for cable or chain. |
|
| |
OVERHANG CABLE
Nylon covered steel cable with safety clip. Brings tool closer to work area without nnwinding cable from reel or mounting reel at lower height. |
|
| Length |
| 3.0 ft. / 19.5 cm |
| 5.0 ft. / 152.4 cm |
|
|
| |
| |
| |
|
