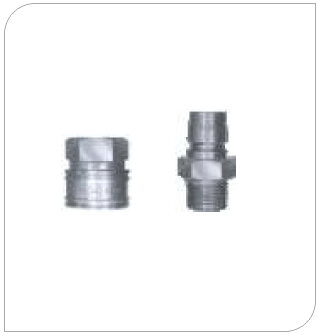

Pneumatic / Straight Though Coupler
|
|
Valveless structure suits viscous fluids !
* Various body materials, sizes and fitting type
* Valveless construction greatly reduces pressure loss and enables high flow rate.
* Suitable for viscous fluids (Such as grease).
* Available in various standard body materials, sizes & fitting types to cope with a wide variety of applications and conditions.
Interchangeability
Provided they are the same size, sockets and plugs can be interconnected irrespective of the type of fittings.
|
|
|
|
| |
| Specifications |
| Body Material |
CS (Chrome-Plated) |
Brass |
SS304 / 316 |
| Size |
1/8" , 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2" |
| Working Pressure kgf/cm2 |
75* |
50* |
75* |
| Pressure Resistancce Kgf/cm2 |
102* |
75* |
102* |
| Packing Material |
NBR, Viton (Optional), Silicon (Optional) |
|
| |
| Through socket male |
Dimensions(mm) |
| Model No |
Size |
L |
A |
Hex |
C |
D |
| TSM 1 |
1/8" |
30 |
9 |
Hex.14 |
|
17.5 |
| TSM 2 |
1/4" |
42 |
13 |
Hex.19 |
|
24 |
| TSM 3 |
3/8" |
46 |
13 |
Hex.23 |
|
28 |
| TSM 4 |
1/2" |
56 |
17 |
Hex.29 |
|
35 |
| TSM 6 |
3/4" |
65 |
19 |
Hex.38 |
|
45 |
| TSM 8 |
1" |
76 |
22 |
Hex.50 |
|
58 |
| TSM 10 |
1 1/4" |
86 |
25 |
face54*$62 |
|
69 |
| TSM 12 |
1 1/2" |
95 |
25 |
face58*$68 |
|
75 |
| TSM 16 |
2" |
108 |
29 |
face77*$82 |
|
98 |
|
| |
| TPM Through plug male |
| TSM 1 |
1/8" |
32 |
9 |
Hex.12 |
15.5 |
|
| TSM 2 |
1/4" |
38 |
13 |
Hex.17 |
18 |
|
| TSM 3 |
3/8" |
43 |
13 |
Hex.19 |
21 |
|
| TSM 4 |
1/2" |
52 |
17 |
Hex.22 |
24 |
|
| TSM 6 |
3/4" |
59 |
19 |
Hex.32 |
28 |
|
| TSM 8 |
1" |
73 |
22 |
Hex.41 |
36 |
|
| TSM 10 |
1 1/4" |
83 |
23 |
Hex.50 |
39 |
|
| TSM 12 |
1 1/2" |
93 |
26 |
Hex.54 |
45 |
|
| TSM 16 |
2" |
102 |
27 |
face70*$80 |
51 |
|
|
| |
| TSH Through socket hose |
| Model No |
Size |
L |
A |
H |
C |
D |
| TSH -1 |
1/8" |
40 |
20 |
16 |
|
17.5 |
| TSH -2 |
1/4" |
55 |
29 |
22 |
|
24 |
| TSH -3 |
3/8" |
62 |
32 |
25 |
|
28 |
| TSH -4 |
1/2" |
74 |
39 |
32 |
|
35 |
| TSH -6 |
3/4" |
90 |
48 |
40 |
|
45 |
| TSH -8 |
1" |
102 |
57 |
52 |
|
58 |
| TSH -10 |
1 1/4" |
117 |
70 |
64 |
|
69 |
| TSH -12 |
1 1/2" |
128 |
75 |
70 |
|
75 |
| TSH -16 |
2" |
141 |
80 |
90 |
|
98 |
|
| |
| TPH Through plug Hose |
| TPH-1 |
1/8" |
41 |
20 |
12 |
15.5 |
|
| TPH-2 |
1/4" |
53 |
29 |
14 |
18 |
|
| TPH-3 |
3/8" |
60 |
32 |
18 |
21 |
|
| TPH-4 |
1/2" |
70 |
39 |
22 |
24 |
|
| TPH-6 |
3/4" |
84 |
48 |
28 |
28 |
|
| TPH-8 |
1" |
105 |
57 |
40 |
36 |
|
| TPH-10 |
1 1/4" |
121 |
70 |
48 |
|
|
| TPH-12 |
1 1/2" |
132 |
75 |
55 |
45 |
|
| TPH-16 |
2" |
142 |
80 |
70 |
51 |
|
|
| |
| TSF Through Socket Female |
| TSF-1 |
1/8" |
27 |
9 |
Hex.14 |
|
17.5 |
| TSF-2 |
1/4" |
32 |
13 |
Hex.19 |
|
24 |
| TSF-3 |
3/8" |
35 |
13 |
Hex.23 |
|
28 |
| TSF-4 |
1/2" |
42 |
17 |
Hex.29 |
|
35 |
| TSF-6 |
3/4" |
48 |
19 |
Hex.38 |
|
45 |
| TSF-8 |
1" |
59 |
22 |
Hex.50 |
|
58 |
| TSF-10 |
1 1/4" |
64 |
23 |
Face54*$62 |
|
69 |
| TSF-12 |
1 1/2" |
71 |
25 |
face58*$68 |
|
75 |
| TSF-16 |
2" |
80 |
27 |
face77*$82 |
|
98 |
|
| |
| TPF Through Plug Female |
| TPF-1 |
1/8" |
26 |
3 |
Hex.14 |
17.5 |
|
| TPF-2 |
1/4" |
34 |
13 |
Hex.17 |
18 |
|
| TPF-3 |
3/8" |
38 |
13 |
Hex.21 |
21 |
|
| TPF-4 |
1/2" |
45 |
17 |
Hex.29 |
24 |
|
| TPF-6 |
3/4" |
51 |
19 |
Hex.35 |
28 |
|
| TPF-8 |
1" |
60 |
22 |
Hex.41 |
36 |
|
| TPF-10 |
1 1/4" |
64 |
25 |
Hex.54 |
39 |
|
| TPF-12 |
1 1/2" |
75 |
25 |
Hex.58 |
45 |
|
| TPF-16 |
2" |
83 |
29 |
face77*$82 |
51 |
|
|
| |
|
| |
