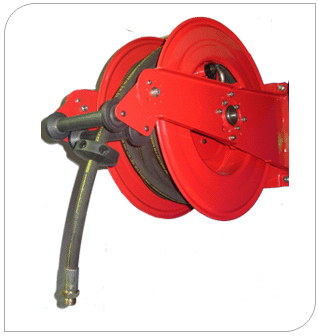

Auto Rewind Hose Reel Series 6000
SERIES 6000 (NEW SERIES ) This series hose reel are mainly used for low, medium and high pressure application. The standard low pressure hose is for air or water, Medium pressure for air water or oil and the high Pressure for grease..
Auto Rewind Hose Reel Series 6000

MODELS WITH HOSE     HOSE CAPACITY MODEL WITHOUT HOSE
MODEL           PRESSURE    I.D   O.D.      LENGTH  MODEL        PRESSURE
psi    /   bar  in   /  mm    mm ft    /     mtr   psi    /   bar
LOW PRESSURE HOSE REELS  Maximum Temperature 150*F(65*C) - Reel 3/8" BSP &  NPT (Female)
SP6310 OLP 275 19 1/4"    6 13.0 65 20 SP6305 OLP 500 35
SP6320 OLP 275 19 1/4"    6 13.0 82 25 SP6315 OLP 500 35
SP6330 OLP 275 19 3/8"  10 17 65 20 SP6325 OLP 500 35
SP6340 OLP 275 19 3/8"  10 17 82 25 SP6335 OLP 500 35
SP6350 OLP 275 19 1/2'   12 20.0 50 15 SP6345 OLP 500 35
SP6360 OLP 275 19 1/2"  12 20.0 65 20 SP6355 OLP 500 35
Low pressure reel furnished standard with pvc hose
MEDIUM PRESSURE OIL REES   Maximum Temperature 212*F(100*C) - Reel 3/8" OR 1/2" BSP &  NPT (Femal)
SP6370 OMP 400 28 1/4"     6 13.0 26 10 SP6365 OMP 1000 70
SP6380 OMP 400 28 1/4"     6 13.0 40 15 SP6375 OMP 1000 70
SP6390 OMP 400 28 1/4"     6 13.0 65 20 SP6385 MLP 1000 70
SP6400 OMP 400 28 3/8"    10 17.0 26 10 SP6395 OMP 1000 70
SP6410 OMP 400 28 3/8"    10 17.0 40 15 SP6405 OMP 1000 70
SP6420 OMP 400 28 3/8"    10 17.0 65 20 SP6415 OMP 1000 70
SP6430 OMP 400 28 1/2"     12 20.0 20 10 SP6425 OMP 1000 70
SP6440 OMP 400 28 1/2"     12 20.0 40 15 SP6435 OMP 1000 70
SP6450 OMP 400 28 1/2"     12 20.0 65 20 SP6445 OMP 1000 70
Medium pressure reels furnished with SAE 100 R6 AT one synthetic textile braid.
HIGH PRESSURE GREASE REELS   Maximum Temperature 212*F(100*C) - Reel 3/8" OR 1/2" BSP &  NPT (Femal)
SP6460 OHP 5800 400 1/4"     6 13.0 26 10 SP6455 OHP 7250 500
SP6470 OHP 5800 400 1/4"     6 13.0 40 15 SP6465 OHP 7250 500
SP6480 OHP 5800 400 1/4"     6 13.0 65 20 SP6475 OHP 7250 500
SP6490 OHP 4750 355 3/8"    10 17.0 26 10 SP6485 OHP 7250 500
SP6500 OHP 4750 355 3/8"    10 17.0 40 15 SP6495 OHP 7250 500
SP6510 OHP 4750 355 3/8"    10 17.0 65 20 SP6505 OHP 7250 500
High pressure reels furnished standard with SAE 100 R2 AT Two braid steel wire hose, suitable for grease applications only.
