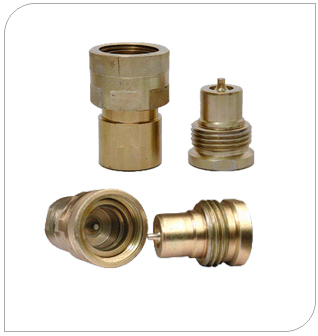

Hydraulic Series HPSC
Hydraulic Series HPSC
SPECIFICATIONS
Size 3/8" to 1"
Working Pressure Upto 1000 Bar
Material Carbon Steel
Application Mobile Plant & Industrial

SCREW COUPLING HPSC (GA DRAWING)


SR.No.
SIZE(T)
L1
L2
S1
S2
S3
ØD1
ØD2
L
1
3/8"
62.0
48.0
32.0
41.0
30.0
45.0
35.0
89.5
2
1/2"
71.0
53.0
34.0
46.0
34.0
50.0
39.2
102.0
3
3/4"
88.0
63.0
46.0
51.0
41.0
55.0
50.0
121.8
4
1"
100.0
72.1
50.0
55.0
50.0
60.0
55.0
138.4
5
1 1/4"
123.0
86.2
65.0
75.0
65.0
80.0
70.0
167.2
6
1 1/2"
137.4
95.6
80.0
90.0
75.0
98.0
84.0
188.4
All dimensions are in mm - Due to ongoing development dimensions may change
