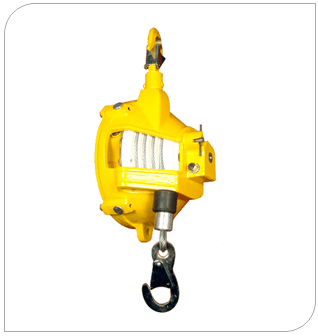

Aluminium Die Casting Series SP SB 85 - 100

MODEL NO	CAPACITY (kgs)	CABLE TRAVEL (mtrs)	MASS (kgs)
SPSB-100	85.0-100.0	1.5	24.4

--------------------------------------------------------------------------------------------------------------------------------------------------------

MODELS	GENERAL TOOLS USED	AREA OF USE IN SHOP FLOOR	MAKE OF TOOLS NORMALLY USED
SPSB - 100	MULTI SPINDLE NUT RUNNERS PNEUMATIC RIVETERS PORTABLE SPOT, EWLDING GUNS, NUMBER PUNCHING MACHINES	ASSLY OF TRUCKS, VAN, JEEPS CHASIS ASSLY. SHOP BODY (WELD) SHOP	DESOUTTER, DAI, ICHI INTELTEK, MECHELONIC NASH, JAYAHIND, SCIAKY

MODEL NO.

PARTS OF SPRING BALANCER

RAW MATERIAL SPECIFICATION

DETAILED PROCESS OF MANUFACTURE

SPSB-100

SPRING
CASING

SPIRAL SPRING
WORM WORM
GEAR

EDD QUALITY
STEEL SHEET

EN-42J IS4454 GR II
20 Mn Cr 5 Material

Outer Cutting, Deep Drawing, Piercing, Bending Fabrication.

Sitting, Bending, Coiling.
Turning,Hobbing, Milling, Hardening, Grinding.
