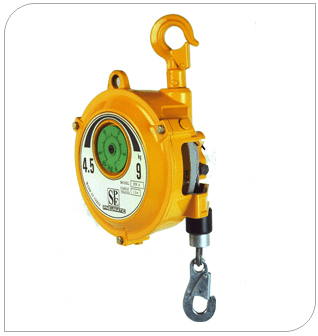

Aluminium Die Casting Series SP SB 9 - 15

MODEL NO	CAPACITY (kgs)	CABLE TRAVEL (mtrs)	DIAMETER OF CABLE (mm)	MASS (kgs)
SPSB-9	4.5-9.0	1.3	4.0	3.4
SPSB-15	9.0-15.0	1.3	4.0	3.8

--------------------------------------------------------------------------------------------------------------------------------------------------------

MODELS	GENERAL TOOLS USED	AREA OF USE IN SHOP FLOOR	MAKE OF TOOLS NORMALLY USED
SPSB - 9 SPSB - 15	IMPACT WRENCHES SMALL PORTABLE SPOT WELDERS, RIVETERS ANGLE GRIENDERS	BODY SHOP OF CARS FABRICATION SHOPS CHASIS ASSLY OF CARS, TRUCKS, JEEPS	WADCO, IEC, NASH M/C CHICAGO PNEUMATIC RALLIWOLF, BLACK & DECKER, HITACHI.

MODEL NO.	PARTS OF SPRING BALANCER	RAW MATERIAL SPECIFICATION	DETAILED PROCESS OF MANUFACTURE
SPSB-9 SPSB-15	BODY BODY COVER PULLEY	LM-6 GRADE ALUMINIUM	Gravity Die Cast for Sturdiness, Diemensional accuracy, Eliminating Blowholes Powder Coating improves surface finish
