Motor & Manual Driven Hose Reel Series 8000

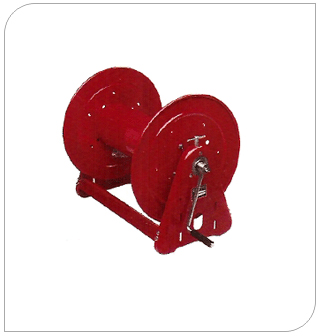

S. P. ENGINEERS Series 8000 hose reels are deasigned for heavy duty application requriring long lengths of hose and will adapt to in the field or in the plant uses. Contemporary engineering and manufactring techniques assure trouble free performance and long product life. S.P. Hose Reels are shipped completely assembled,ready to install.Installation instrution are supplied with each hose reel.

S.P. Hose Reels can also be ordered less swivel to be used as storage hose reels for hose,cord,cable,rope,extension cords and numerous other applications.

Motor & Manual Driven Hose Ree Series 8000

STANDARD FEATURES INCLUDE :

*   Nickel-plated swivel available with VITON "O"ring seals. Viton are standard.
*   Unitized all bolted construction.Reel,frame,spool and drum are fabricated of      heavy gauge steel.
*   Temperature operating rangea-20* F (-29* C) to 250* F (121* C).
*   Manual driven reels can be converted to electric,hydraulic or air driven with      motor mounting or either end of reel.
*   Chain &sprocket partiality shrouded for extra safety.
*   Durable baked on powder coat red finish standard.
*   Full flow shaft and swivel.
*   Permanently lubricated dual main bearings.
*   Steel dram.
*   Lock pin to prevent spool rotation when the reel is not in use.
*   Vibration-proof self-locking fasteners to ensure assembly integrity.

STANDARD FEATURES INCLDE

*  Adjustable spool rotation drag that eliminates hose bvacklash when de-reeling
    Nicked-plated swivel with viton “O” ring seals.
*  Full flow shaft and swivel .
*  Permanently lubricated dual main bearings.
*  Motor mounting at ether end of reel.
*  Durable power coat finish (red).
*  All bolted construction-no welds.
*  Lock pin to prevent spool rotation when the reel in not in use.
*  Temparature operating range from -20 F (29degree C) to +250 F
    (121degree C).
*  Vibration-proof self-locking fasteners to ensure assembly integrity.
*  Manual driven reels are easily converted to power driven types.
*  Unitized spool construction.
*  Steel drum.

ALL 8000 SERIES REELS ARE SUPPLIED WITHOUT HOSE, ASSEMBLIES WILL BE QUOTED UPON REQUEST. INLET IS NPT (F) OR BSP (F)

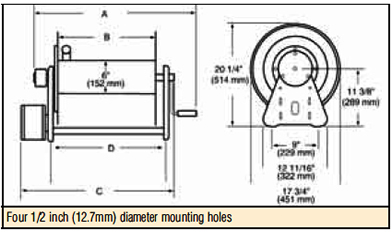

MODEL NO.	HOSE I.D.		HOSE O.D.	CAPACITY		PRESSURE		A		B		C		D
	in	mm	mm	ft	mtr	psi	bar	in	mm	in	mm	in	mm	in	mm
HAND CRANK REELS
SP HC 8010 L	1/4"	6	13	200'	61	1000	69	25"	635	12"	305	N/A		153/4"	400
SP HC 8012 L	1/4"	6	13	425'	130	1000	69	31"	788	18"	438	N/A		213/4"	553
SP HC 8110 L	3/8"	10	17	140'	43	1000	69	25"	635	12"	305	N/A		153/4"	400
SP HC 8112 L	3/8"	10	17	300'	91	1000	69	31"	788	18"	458	N/A		213/4"	553
SP HC 8210 H	1/2"	12.7	21.5	100'	31	3000	207	19"	483	6"	153	N/A		93/4"	248
SP HC 8212 H	1/2"	12.7	21.5	200'	61	3000	207	25"	635	12"	305	N/A		153/4"	400
SP HC 8214 L	1/2"	12.7	21.5	325'	99	1000	69	31"	788	18"	458	N/A		213/4"	553
SP HC 8310 L	3/4"	19	30.2	50'	16	1000	69	19"	483	6"	153	N/A		93/4"	249
SP HC 8312 L	3/4"	19	30.2	100'	31	1000	69	25"	635	12"	305	N/A		153/4"	400
SP HC 8314 L	3/4"	19	30.2	175	54	1000	69	31	788	18"	458	N/A		213/4"	553
SP HC 8316 M	3/4"	19	30.2	100'	31	3000	207	25	635	12"	305	N/A		153/4"	400
SP HC 8318 M	3/4"	19	30.2	175'	54	3000	207	31	788	18"	458	N/A		213/4"	553
ELECTRIAL MOTOR DRIVEN REELS
SP EM 8010 L 10 A	1/4"	6	13	230	70	1000	69	N/A		12	305	235/8	600	153/4	400
SP EM 8012 L 12 D	1/4"	6	13	425	130	1000	69	N/A		18	458	295/8	753	213/4	553
SP EM 8110 L 10 A	3/8"	10	17	215	65	1000	69	N/A		12	305	235/8	600	153/4	400
SP EM 8112 L 12 D	3/8"	10	17	300	91	1000	69	N/A		18	458	295/8	753	213/4	553
SP EM 8210 L 10 A	1/2"	12.7	21.5	100	31	1000	69	N/A		6	153	195/8	499	93/4	249
SP EM 8212 L 12 D	1/2"	12.7	21.5	200	61	1000	69	N/A		12	305	235/8	600	153/4	400
SP EM 8214 12 D	1/2"	12.7	21.5	325	99	1000	69	N/A		18	458	295/8	753	213/4	553
SP EM 8310 12 D	3/4"	19	30.2	50	16	1000	69	N/A		6	153	195/8	499	43/4	249
SP EM 8312 L 12 D	3/4"	19	30.2	100	31	3000	207	N/A		12	305	235/8	600	153/4	400
SP EM 8314 M 12 D	3/4"	19	30.2	175	54	3000	207	N/A		28	712	385/8	982	303/4	781
SP EM 8316 L 12 D	3/4"	19	30.2	100	31	1000	69	N/A		12	305	235/8	600	153/4	400
SP EM 8318 M 24 D	3/4"	19	30.2	100	31	3000	207	N/A		12	305	235/8	600	153/4	400
AIR MOTOR DRIVEN REELS
SP AM 8010 L 4A	1/2"	12.7	21.5	200'	61	1000	69	N/A		12"	305	231/4"	591	153/4	400
SP AM 8210 L 4A	3/4"	19	30.2	50	16	1000	69	N/A		6	153	171/4	439	93/4"	249
SP AM 8212 L 6A	3/4"	19	30.2	100	31	1000	69	N/A		12	305	171/4	439	153/4	400
HYDRAULIC MOTOR DRIVEN REELS
SP HM 8010 M	1/2"	12.7	21.5	200'	61	3000	207	N/A		12	305	171/4"	439	153/4"	400

Model Number Significance

Drive Type	Swivel Size	Width of Spool	Power Source
A-Air Preumatic Moter Drive (A)	0-No Swivel	06" (150mm) with of spool	12-12 volt DC
C-Hand Crank driect drive (HC)	2-1/2" (12mm) I.D	12" (300mm) with of spool	24-24 volt DC
E-Electric moter driven, AC or DC (EM)	3-3/4"' (19mm) I.D	18" (450mm) with of spool	10-115 volt DC
H-Hydroulic moter driven (HM)	4-1/2" (12mm) Dual	22" (560mm) with of spool	4A-4AM (Air motor)
	5-13/4" (129mm) Dual	28" (700mm) with of spool	6A-6AM (Air motor)

Series 8000

spool spacer diameter
1-steel-6" (153 mm) dir

Pressure type
L-1000 PSI (69 bar)
M-3000 PSI (207 bar)

Electric Current Type
A-AC
D-DC

Reels can also be orered less swirel to be used as storage reels for cord, cable, hose, extension cord and numerous other applications.
Some of the above combinations of options are not available. Check with office for price and availability.

NOTE PLEASE
* To prevent drum damage all hose should be extended out from the drum before pressurizing.
* "D" dimension for hand crank direct drive reels is 29" (737mm) or 38" (966mm)
