Motor & Manual Driven Hose Reel Series 9000

S. P. ENGINEERS Series 9000 reels are deasigned for heavy duty application requriring long lengths of hose and will adapt to in the field or in the plant uses. Contemporary engineering and manufactring techniques assure trouble free performance and long product life.
S.P. Reels are shipped completely assembled,ready to install.Installation instrution are supplied with each reel. S.P. Reels can also be ordered less swivel to be used as storage reels for hose,cord,cable,rope,extension cords and numerous other applications.

Motor & Manual Driven Hose Ree Series 9000

STANDARD FEATURES INCLUDE :

*   Swivels available with VITON "O"ring seals. Viton are standard.
*   Unitized all bolted construction.Reel,frame,spool and drum are fabricated of      heavy gauge steel.
*   Temperature operating rangea-20* F (-29* C) to 210* F (99* C).
*   Manual driven reels can be converted to electric,hydraulic or air driven with      motor mounting or either end of reel.
*   Chain &sprocket partiality shrouded for extra safety.
*   Durable baked on powder coat red finish standard.

Motor & Manual Driven Hose Reel Series 9000

MODEL NO.	HOSE I.D.		HOSE O.D.	CAPACITY		PRESSURE		A		B		C		D
	in	mm	mm	ft	mtr	psi	bar	in	mm	in	mm	in	mm	in	mm

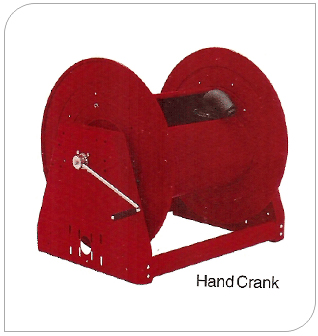

HAND CRANK REELS
SP HC 9110 L	1"	25.4	38.5	80'	24	600	42	25"	63.5	153/8"	39.7	15"	38.1	N/A
SP HC 9112 L	1	25.4	38.5	110	34	600	42	28	71.2	153/8"	39.7	15	38.1	N/A
SP HC 9210 L	1 1/2"	38.1	50.8	75	23	600	42	28	71.2	153/8"	39.7	15	38.1	N/A
SP HC 9212 L	1 1/2"	38.1	50.8	125	38	600	42	28	71.2	153/8"	39.7	24	61	N/A
SP HC 9214 L	1 1/2"	38.1	50.8	50	15	600	42	25	63.5	153/8"	39.7	15	38.1	N/A
ELECTRIAL MOTOR DRIVEN REELS
SP EM 9210 L 12D	1 1/2"	38.1	50.8	75'	23	600	42	28"	71.2	153/8"	39.7	15"	38.1	271/2"	69.4
SP EM 9212 L 12DX	1 1/2"	38.1	50.8	50	15	600	42	25	63.5	153/8"	39.7	15	38.1	291/2"	75.9
SP EM 9214 L 10AX	1 1/2"	38.1	50.8	50	15	600	42	25	63.5	153/8"	39.7	15	38.1	291/2"	75.9
SP EM 9210 M 24 DX	1	25.4	38.5	110	34	1000	102	28	71.2	153/8"	39.7	15	38.1	291/2"	75.9
AIR MOTOR DRIVEN REELS
SP A 9110 L 6A	1"	25.4	38.5	190'	58	600	42	28"	71.2	103/4"	27.3	15"	28.1	281/2"	71.4
SP A 9112 L 6A	1	25.4	38.5	110	34	600	42	28	71.2	155/8"	39.7	15	38.1	281/2"	71.4
SP A 9210 L 6A	1 1/2"	38.1	50.8	50	15	600	42	25	63.5	155/8"	39.7	15	38.1	281/2"	71.4
HYDRAULIC MOTOR DRIVEN REELS
SP H 9110 H	1"	25.4	38.5	125'	38	3000	207	25"	63.5	155/8"	39.7	24"	60.7	361/2"	92.5
SP H 9210 L	1 1/2	38.1	50.8	75	23	600	207	28	71.2	155/8"	39.7	15	38.1	271/2"	69.7

Model Number Significance

Drive Type	Swivel Size	Width of Spool	Power Source
A-Air Preumatic Moter Drive (A)	0-No Swivel	15" (381mm) with of spool	12-12 volt DC
H-Hand Crank driect drive (HC)	1-1/2'" (25mm) I.D	24" (610mm) with of spool	24-24 volt DC
E-Electric moter driven, AC or DC (EM)	2-1 1/4"' (32mm) I.D	See "C" Dimension	10-115 volt DC
H-Hydroulic moter driven (HM)	3-1/4" (12mm) Dual	online drawing	6A-6AM (Air motor)

Series 9000

Flange Diameter
1-25" (63.5 cm)
2-28" (71.12 cm)

spool spacer diameter
1-10 3/4 " (27,31 cm)
1-15 5/8 " (39,69 cm)

Pressure type
L-600 PSI (43 bar)
M-1000 PSI (71 bar)
H-3000 PSI (207 bar)

Electric Current Type
A-AC
D-DC

Although S.P.Engineer offers over 400 different models of the above option are not available. Check office for price and availability.
