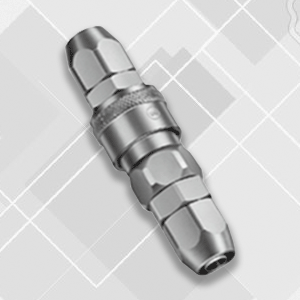

AIR NUT COUPLER
NO HOSE CLAMPING BAND REQUIRED! SIMPLE SECURE. URETHANE HOSE CONNECTION! FITTED WITH
| Specifications | ||||
| Body Material | Steel (chrome-plated) | |||
| Size | For Ø5 x Ø8 hose, Ø8 x Ø12 hose For Ø6 x Ø9 hose, Ø8.5 x Ø12.5 hose For Ø6.5 x Ø10 hose, Ø11 x Ø16 hose |
|||
| Working pressure Mpa (kgf/cm²) | Air Coupler: 1.5 (15), Nut Coupler 200: 1.0 (10) | |||
| Pressure resistance Mpa (kgf/cm²) | Air Coupler: 2.0 (20), Nut Coupler 200: 1.5 (15) | |||
Product Codes and Dimensions Tables
Plug
| For Urethane Hose Connection (PN) | |||||||||
| Product Code | Application | Mass (g) | Dimention (MM) | ||||||
| LP | C | A | B | E | H | T | |||
| SP 50 PN | For 5 X 8 HOSE | 30 | 43 | 20 | 17 | 4.5 | 7.5 | Hex.17 | Hex.17 |
| SP 60 PN | For 6 X 9 HOSE | 40 | 43 | 20 | 17 | 5.3 | 7.5 | Hex.17 | Hex.17 |
| SP 65 PN | For 6.5 X 10 HOSE | 42 | 43 | 20 | 17 | 5.3 | 7.5 | Hex.17 | Hex.17 |
| SP 80 PN | For 8 X 12 HOSE | 50 | 45 | 20 | 19 | 7.5 | 7.5 | Hex.19 | Hex.19 |
| SP 85 PN | For 8.5 X 12.5 HOSE | 52 | 45 | 20 | 19 | 7.5 | 7.5 | Hex.19 | Hex.19 |
| SP 110 PN | For 11 X 16 HOSE | 75 | 52 | 20 | 23 | 10 | 7.5 | Hex.23 | Hex.24 |
Socket
| For Hose Connection (SH) | ||||||||
| Product Code | Application | Mass (g) | Dimention (MM) | |||||
| LP | A | B | E | H | T | |||
| SP 50 SN | For 5 X 8 HOSE | 117 | 60 | 17 | 26.5 | 4.5 | Hex.19 | Hex.19 |
| SP 60 SN | For 6 X 9 HOSE | 115 | 59.5 | 17 | 26.5 | 5.3 | Hex.19 | Hex.19 |
| SP 65 SN | For 6.5 X 10 HOSE | 115 | 59.5 | 17 | 26.3 | 5.5 | Hex.19 | Hex.19 |
| SP 80 SN | For 8 X 12 HOSE | 120 | 61.5 | 19 | 26.5 | 7.5 | Hex.19 | Hex.19 |
| SP 85 SN | For 8.5 X 12.5 HOSE | 120 | 61.5 | 19 | 26.5 | 7.5 | Hex.19 | Hex.19 |
| SP 110 PN | For 11 X 16 HOSE | 153 | 64.5 | 23 | 26.5 | 10 | Hex.23 | Hex.23 |
