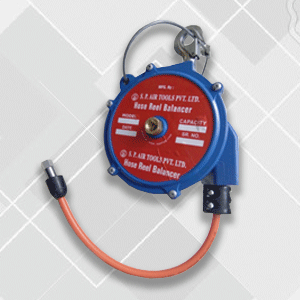

AIR TOOL HOSE BALANCER

air-tool-hose-balancers

S.P. Engineers make Air Tool Hose Balancer is intended for pneumatic equipment with safety lock & without ratchet. This Air Tool Hose Balancer is a important addition to your assembly line by combine PU braided air hose and spring driven flexible tension keep work area clean and neat. S.P. Engineers Air Tool Hose Balancers is easy to reach the equipment and quick point the tool in the right place when you don't use it anymore. For different weight of air tools, it is easy to adjust tension.

Features

  • ➾ Mainly design for balancing air tools weight. Its comes with a combination n of hose reel & tool balancer. It gives clean, orderly production/assembly workplace and increase working efficiency.
  • ➾ Increase safety while working with costly air tools.
  • ➾ Made of plastic (abs) housing, light in weight so installation is easy.
  • ➾ It supplied with 8.5 MM ID Braided hose which give more air flow to required tools @ Max working Pressure 15 Bar, Working Temperature (c)-5+60. Also PU braided hose smooth in working easy to handle (down-pull) Stroke.
  • ➾ Top Swivel forged hook for 360’ rotation, Rubber Stopper, Extra Support Steel wire rope for safety of anti-falling Tool Hose Balancer.
  • ➾ Worm & Gear for Adjusting weight, main air inlet comes with brass (for non- corrosion)
MODEL NO BALANCING CAPACITY HOSE LENGTH HOSE DIA (ID) AIR INLET CONNECTION WEIGHT KG DIMENSIONAL DWG
MINI. (Kg) MAXI. (Kg)
SPATHB0515 0.5 1.5 1.3 Mtr 8.5 MM 3/8" Male CLICK HERE
SPATHB1525 1.5 2.5 1.3 Mtr 8.5 MM 3/8" Male CLICK HERE
SPATHB2535 2.5 3.5 1.3 Mtr 8.5 MM 3/8" Male CLICK HERE
SPATHB3505 3.5 5.0 1.3 Mtr 8.5 MM 3/8" Male CLICK HERE
SPATHB0565 5.0 6.5 1.3 Mtr 8.5 MM 3/8" Male CLICK HERE
