HYDRAULIC COUPLE

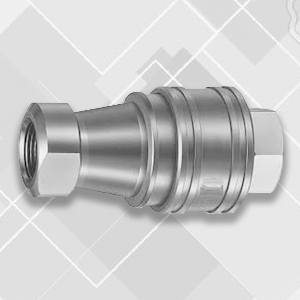

hydraulic-coupler

Specifications
Applicable Fluids : Air / Water / Hydraulic Oil /Chemicals / Gas
Valve Structure : Two Sided Shut Off
Body Material Brass Stainless Steel Steel (Zinc Plated)
Size 1/8", 1/4", 3/8" 1/2", 3/4" 1" 1 1/4" 1 1/2" 2" 1/8", 1/4", 3/8" 1/2", 3/4", 1 1 1/4", 1 1/2" 2"
Working pressure Mpa (kgf/cm2) 5.0 (51) 3.0 (31) 2.0 (20) 1.5 (15) 7.5 (76) 4.5 (46) 3.0 (31) 2.0 (20)
Pressure resistance Mpa (kgf/cm2) 7.5 (76) 4.5 (46) 3.0 (31) 2.3 (24) 10 (102) 6.5 (66) 4.5 (46) 3.0 (31)

Product Codes and Dimensions Tables

Plug

hydraulic-coupler-plug

Product Code Application Mass (g) Dimention (MM)
Steel Brass Stainless LP C A Hp T
SP 1P R1/8 19*3 21 19 29 19 11 Hex. 14 Rc1/8
SP 2P R1/4 35 38 35 36 22 13 Hex. 17 Rc1/4
SP 3P R3/8 60 65 60 40 25 13 Hex.21 Rc3/8
SP 4P R1/2 123 134 124 44 28 15 Hex. 29 Rc1/2
SP 6P R3/4 212 231 213 52 36 17 Hex. 35 Rc3/4
SP 8P R1 350 381 352 62 40 20 Hex. 41 Rc1
SP 10P R1 1/4 568 605 595 70 45 24 Hex. 54*1 Rc1 1/4
SP 12P R1 1/2 821 870 840 75 49 24 Hex. 63*2 Rc1 1/2
SP 16P R2 1410 1538 1459 80 52 27 Face 77 x Ø84 Rc2

Socket

hydraulic-coupler-socket

Product Code Application Mass (g) Dimention (MM)
Steel Brass Stainless LS ØD A Hs T
SP 1S R1/8 85*3 93 86 48 24 11 Face 14 x Ø18 Rc1/8
SP 2S R1/4 133 145 134 58 28 13 Face 19 x Ø22 Rc1/4
SP 3S R3/8 208 227 209 65 35 13 Face 21 x Ø25 Rc3/8
SP 4S R1/2 428 466 431 72 45 15 Face 29 x Ø35 Rc1/2
SP 6S R3/4 710 773 714 88 55 17 Face 35 x Ø41 Rc3/4
SP 8S R1 1000 1089 1006 102 65 20 Face 41 x Ø48 Rc1
SP 10S R1 1/4 1565 1678 1585 115 77 24 Face 54 x Ø59 Rc1 1/4
SP 12S R1 1/2 2331 2499 2354 124 88 24 Face 63 x Ø69 Rc1 1/2
SP 16S R2 3602 3852 3645 132 108 27 Face 77 x Ø86 Rc2
