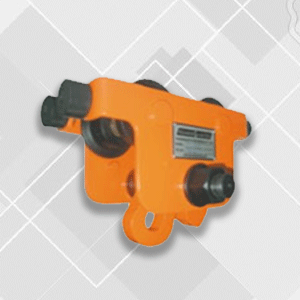

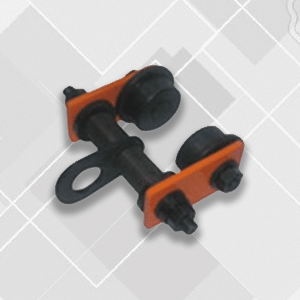

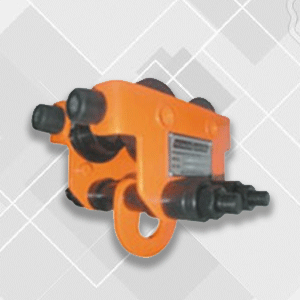

I – BEAM TROLLEY

S.P. Engineers I-Beam Trolley has been designed specially to be used along with spring balancers in weld shop of Automobiles on standard I-beam (150X75) or (300X100) or (125X65) for 3 Dimensional Movement on X-Y-Z axus. S.P. Engineers Trolleys are rugged in construction made from steel side plates graded cast iron rollers with Best Quality roller bearings, steel shafts nitride rubber shock absorbers and powder coated for good surface finish. S.P. Engineers I-Beam Trolleys are available in 4 models for suspending TRANSFORMER, WELDING GUN and KICKLESS CABLE.

MODEL CAPACITY MINI. RADIUS FOR CURVE AVAILABLE BEAM MASS
SPIBT-1 1000 KGS 1500 MM 150 X 75 X 5.5MM 13 KGS
SPIBT-05 500 KGS 1000 MM 75 X 150 X 5.5 MM 6.5 KGS
SPIBT -25 250 KGS 1000 MM 150 X 75 X 5.5 MM 6 KGS
SPIBT-12.5 125 KGS 300 MM 125 X 65 X 5.0 MM 2.5 KGS
